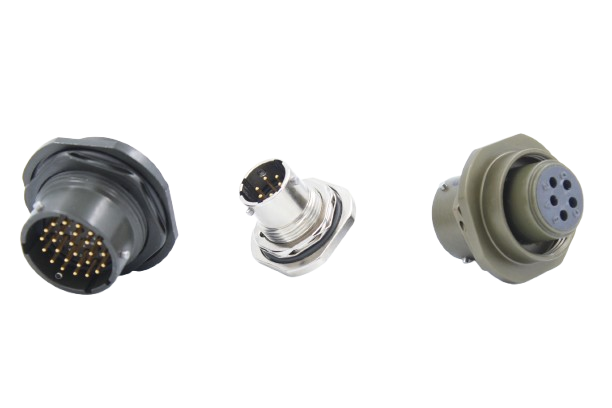

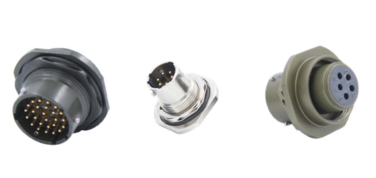

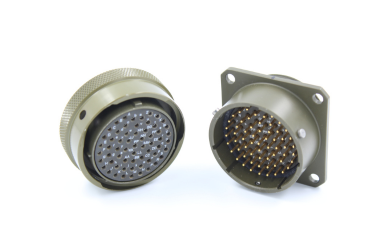

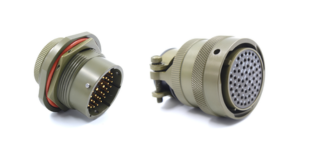

V651 Series
(Equivalent to MIL-DTL-26482 Series I / JSS 50813)
Key Features
- Intermateability – Compatible with MIL-DTL-26482 Series I / JSS 50813
- 3-Point Bayonet Coupling – Rapid secure mating with quick disconnect mechanism
- Polarization – 5-key / keyway
- Compact & Lightweight – Aluminum alloy construction, minimal weight
- 9 Shell Sizes Available – Multiple insert patterns up to 61 contacts
- Termination – Permanently bonded solder cup contacts
- Scoop-Proof Design – 5-key polarization prevents mis-mating
- Environmental Sealing – Triple-webbed grommets
- Plating Finishes – Olive Drab Cadmium, RoHS Compliant
- Contacts – High-Reliable gold plated copper alloy material
- Mechanical Endurance – 500+ Mating Cycles
Applications
Military systems · Aerospace platforms · Naval applications · Industrial equipment · Defense interconnections · Communication systems · Avionics
Extended Versions of V651 Series
- Custom Material Grades – Tailored for specialized environmental resistance
- Non-Standard Insert Arrangements – Customized patterns as per specific customer requirements
- PCB Termination – Specialized connectors designed for printed circuit board mounting
Why Choose VMX V651 Series?
Proven reliability in extreme environments with precision bayonet coupling, environmental durability and flexible RoHS-compliant finishes.
